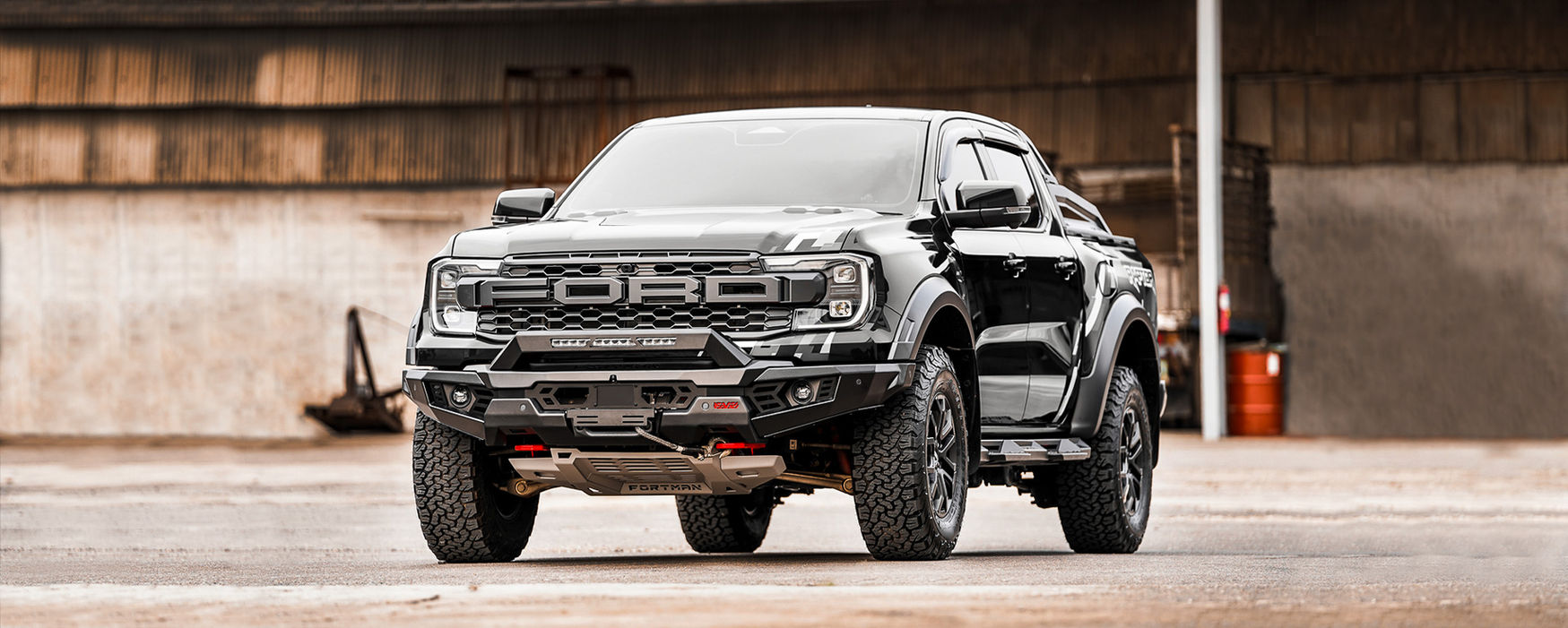

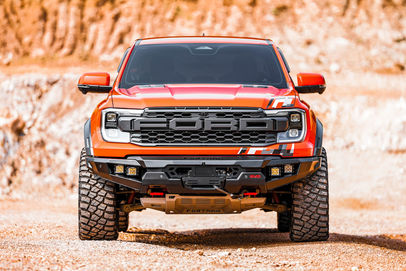

SPECTER Aluminium Winch Bumper - Ford Ranger Raptor 2022

ELEVATE YOUR RANGER RAPTOR.
DISCOVER STRENGTH, PROTECTION, AND UNCOMPROMISED PERFORMANCE – ALL IN ONE.

HIGH-STRENGTH ALUMINIUM CONSTRUCTION

Crafted from 4mm and 5mm high-strength aluminium, our bumper delivers the same level of robustness as traditional steel bumpers. Experience unparalleled durability without the excess weight.

REINFORCEMENT STEEL-FABRICATED BRACKETS

Enhanced Sturdiness, Ultimate Confidence : The inclusion of precision-engineered reinforcement steel-fabricated brackets takes the durability of our aluminium bumper to new heights. These brackets are strategically designed to amplify the bumper's sturdiness, ensuring it stands strong against the toughest trials. We understand that your adventures can lead you to remote and challenging terrain. Our bumper's reinforcement brackets provide an extra layer of security, offering you peace of mind that your front end is fortified to take on the unknown.

AIRBAG COMPATIBILITY

Our aluminium bumper's reinforcement brackets are meticulously designed to maintain airbag compatibility.

Bumper is designed to be compatible with OE bash plate and OE recovery points. And the full pack options to enhance your Raptor's capabilities.

FULL PACK for upgrading your RAPTOR 's front consists of :

» SPECTER ALUMINIUM WINCH BUMPER

» SPECTER RECOVERY POINTS

» SPECTER ALUMINIUM RADIATOR PLATE

In line with the modular design, each module is created individually, allowing you to customize and replace your preferred part with OE.

SPECIFICATIONS

FEATURES

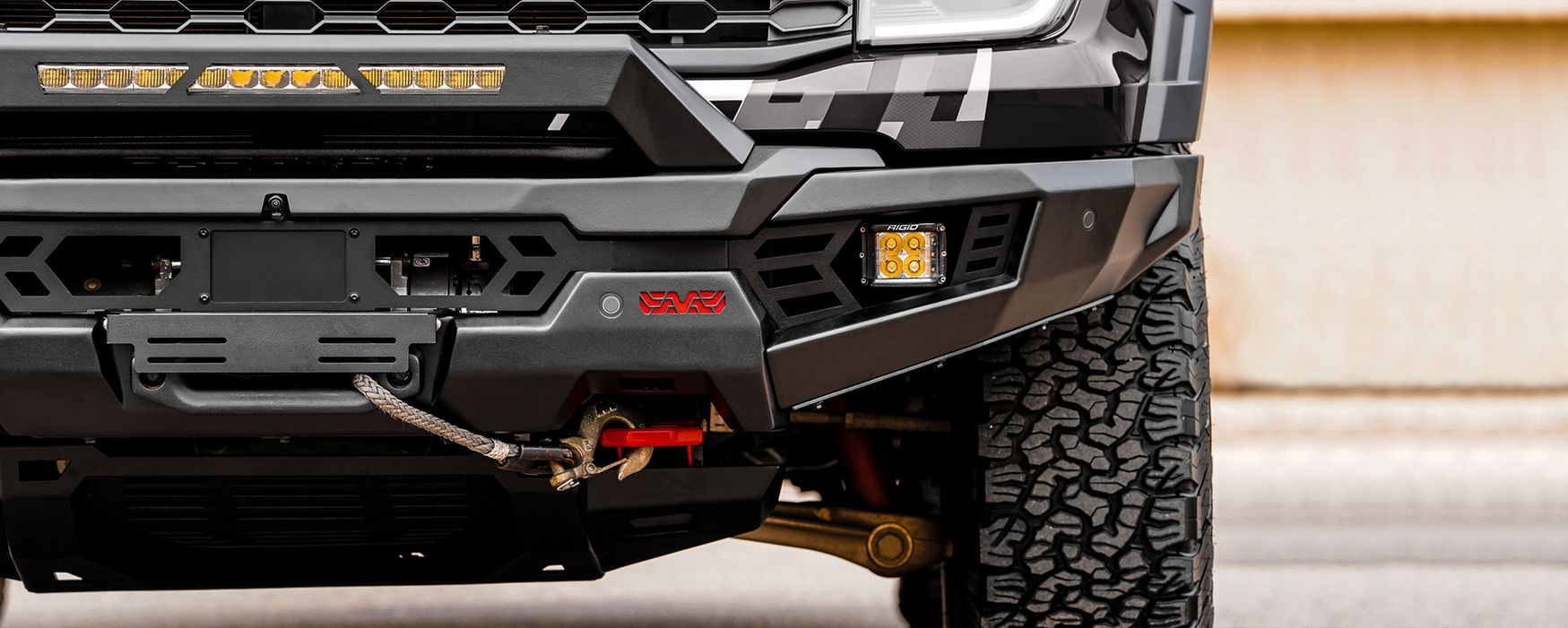

High strength aluminium winch bumper with with reinforcement steel-fabricated brackets
Winch capable front bumper (synthetic rope winch compatible up to 12,000 lb)
High grade steel separate winch cradle designed and tested for Next-gen Ranger Raptor
Unique slim fit design with less protrude ( 130 mm. from the front end)
Distinctive light frame design
Full bumper replacement bar offering maximum frontal impact protection
Multi-fold wing design including taper for optimum strength, and extensive protection plates on both sides
Excellent airflow with large front grill panel
Increased approach angles
Compatible with all OE safety systems
- Adaptive cruise control compatible
- Parking sensor compatible
- Camera compatible
Provision for driving lights or light bar
Twin hi-lift jack points
Dual aerial provision
Flip-up number plate bracket
Bumper compatible with OE tow points and OE bash plate, with upgradable option to FORTMAN recovery points or radiator plate
Optional FORTMAN recovery points [Tow points are rated 8,000 kg.’s each]
Optional FORTMAN Radiator plate
Optional light bar hoop accessories
Optional light frame : Vented light frame for OE fog light/ cube light, Double cube light bracket
Matte black powder coated finish
ADR and SRS airbag compliant
2 year warranty

TECH SPECS.

MATERIALS :

Body - Center pans and wing : High strength aluminium – 5052-H32 Heat treated alloy (4mm.)
Bar to chassis bracket mounts : High strength aluminium – 5083-H116 Alloy (5mm.)
Winch cradle : High-grade steel separate winch cradle (4mm.) designed and tested for Next-Gen Ranger Raptor
Recovery points : High grade steel 20 mm.
Radiator plate : High strength aluminium – 5052-H32 Heat treated alloy 6 mm.

WINCH : Synthetic rope winch compatible up to 12,000 lb

FINISH : Matte black powder coated color

WEIGHT :

Front Bumper – 47 kg. (The bar only adds 30 kg. to vehicle)
Light Bar Hoop – 2.8 kg.
Recovery Points – 12.2 kg.
Radiator Plate – 9.5 kg.

LIGHT FITTING RECOMMEND :

Light bar for hoop : LED Light bar up to 22” (single row/ low profile adjustable slide mounts)
Light bar for mount on top : Light bar 28”, 29”
Lights for vented light frame : 4” round and cube light with additional lighting mounting point
Light for double cube light bracket : 4” cube light with additional light bracket
